DasMarine

Appears New

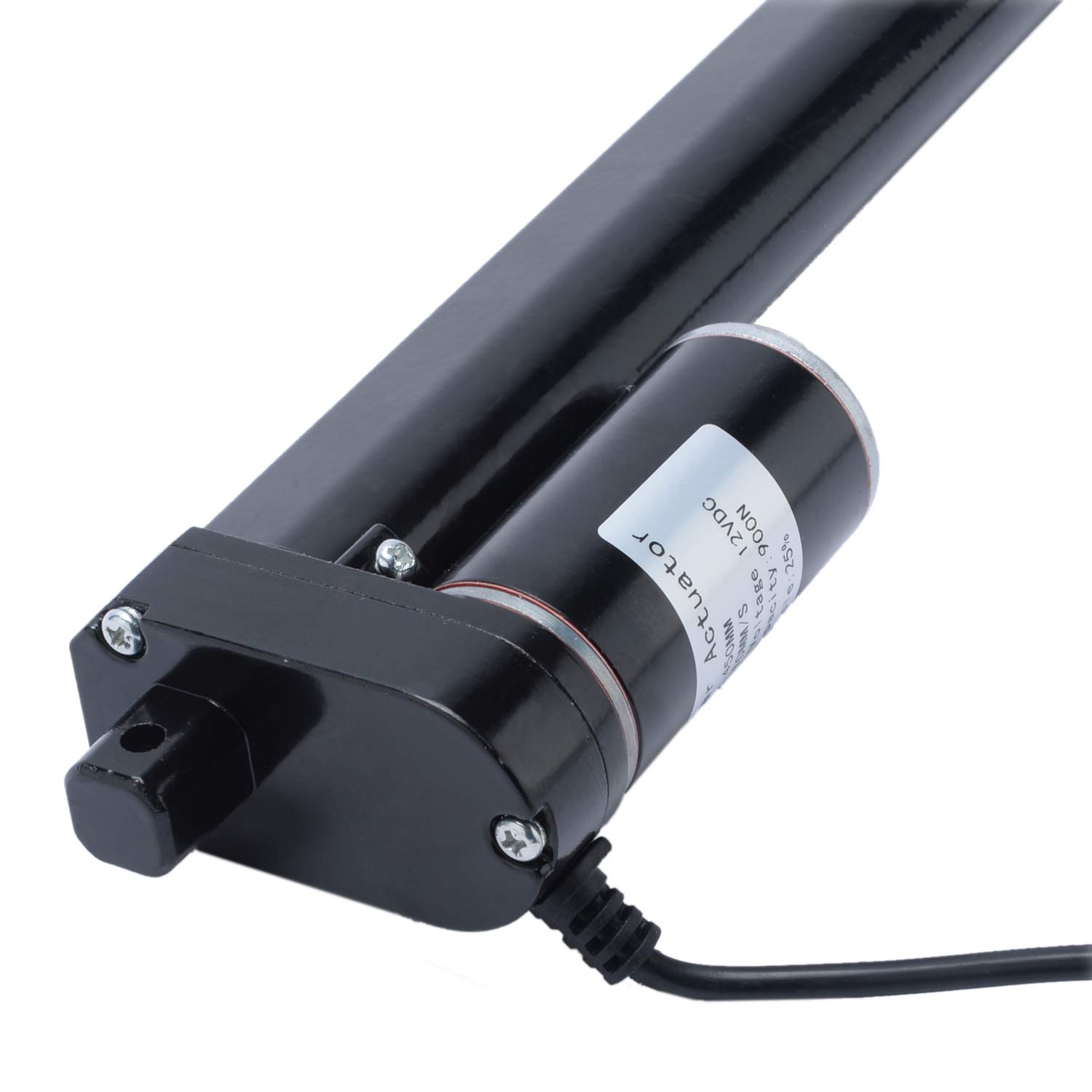

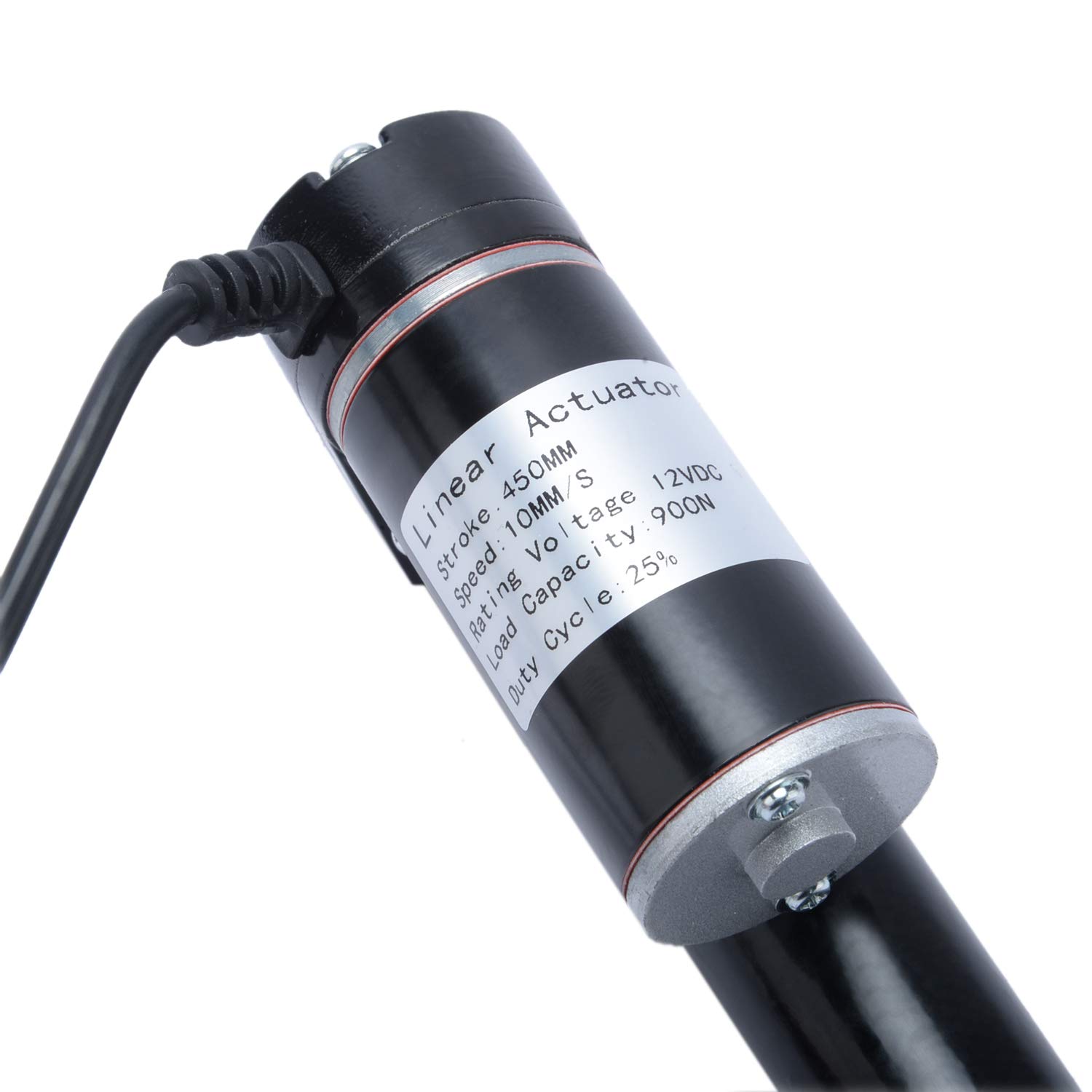

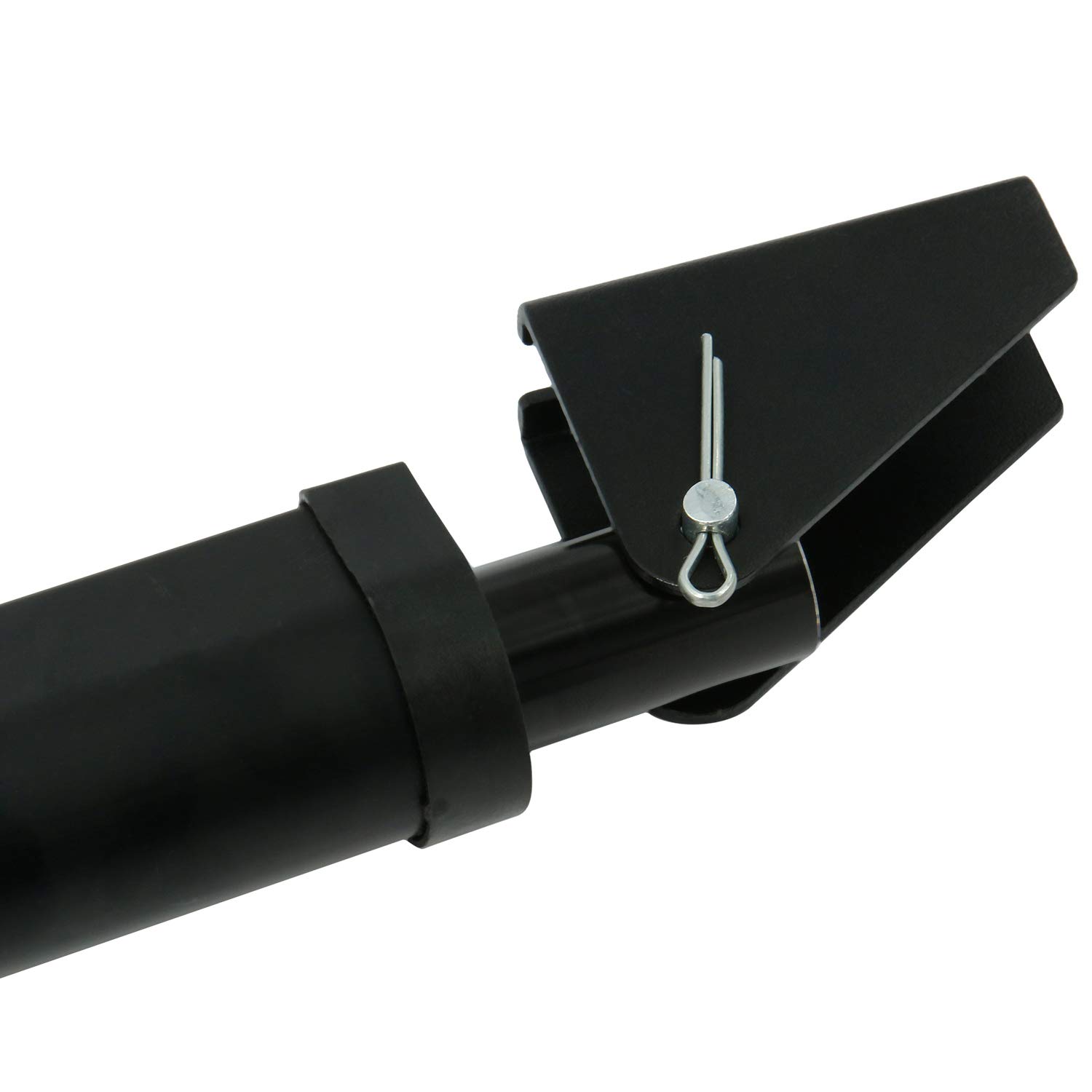

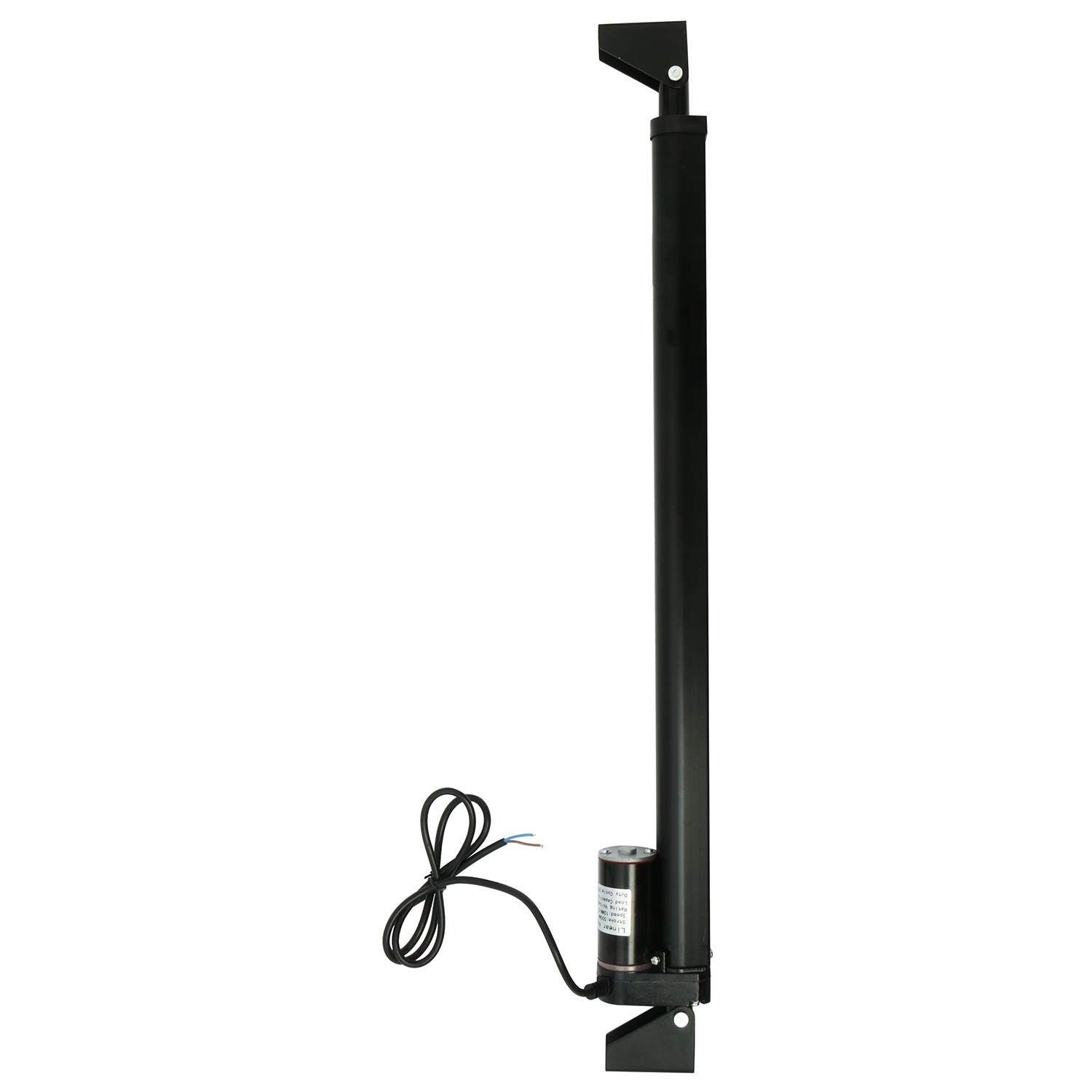

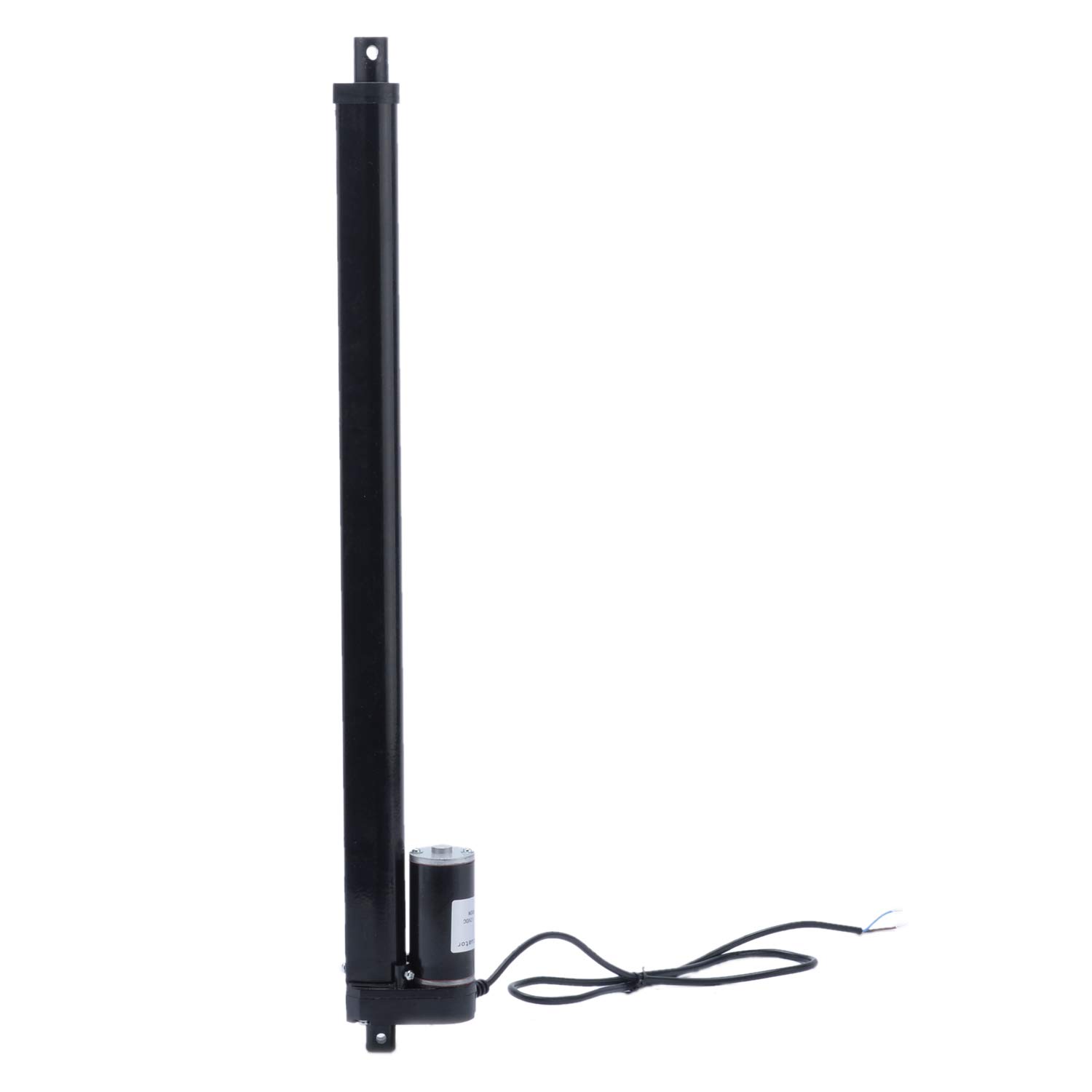

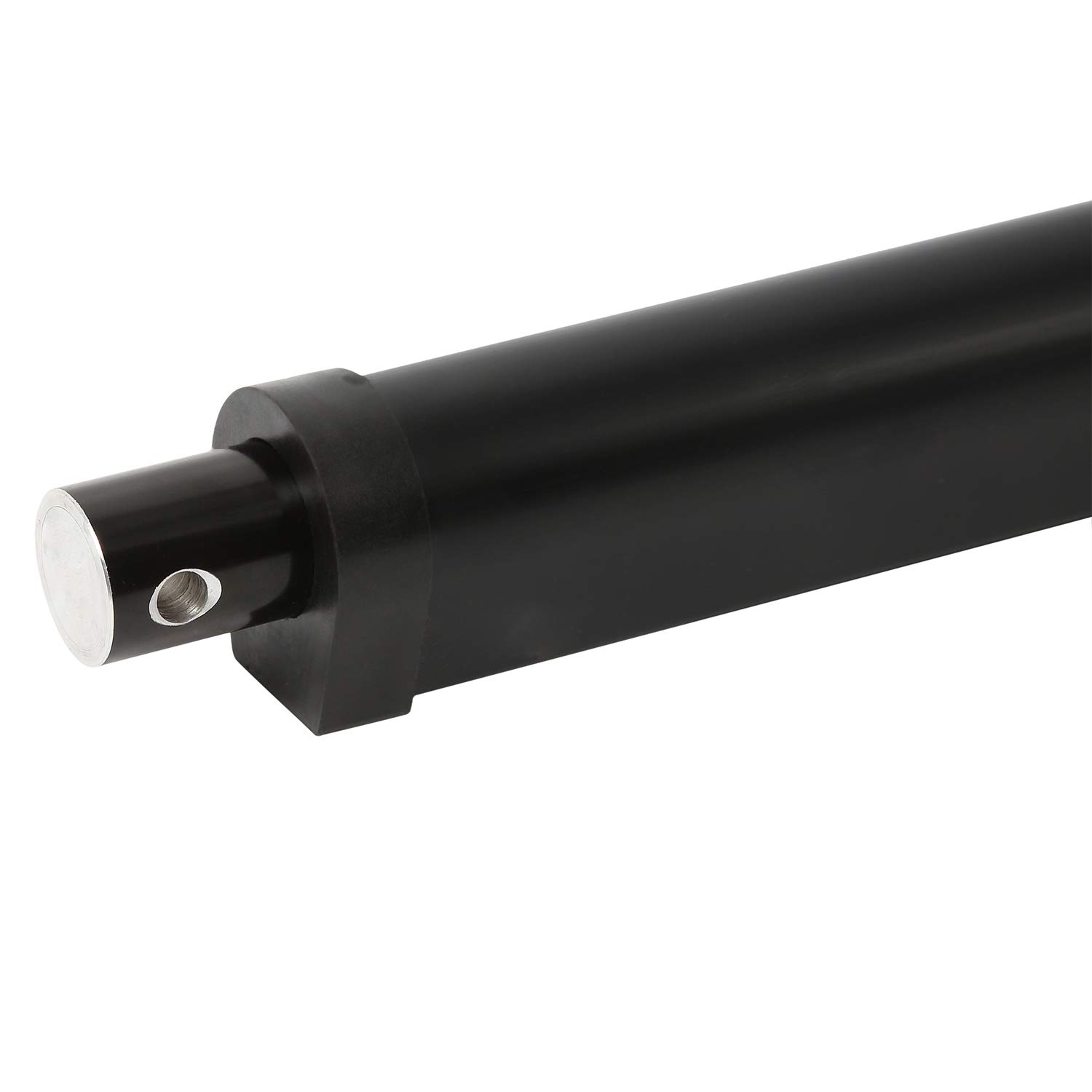

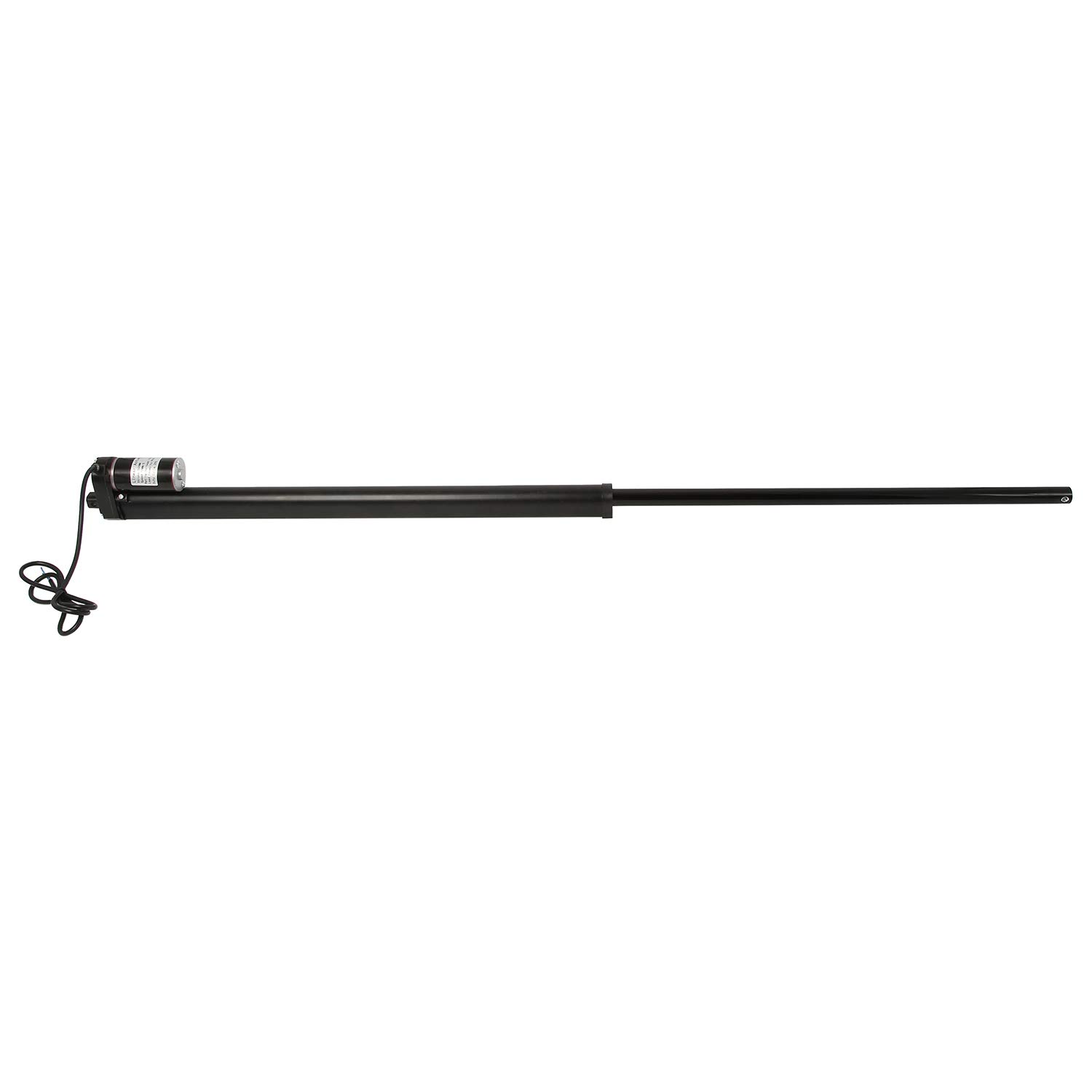

Specification: Color: Black Material: Aluminum Alloy Input Voltage: DC 12V Rated Current: 3Amp Stroke length = 450mm(18") Retracted length = 555mm(21.9"); Extended Length= 1005mm(39.6") Rated Load: 900N Travel Speed: 10mm/s Limit Switch: Built-in Working Temperature: -20ºC to 65ºC Protection Class: IP54 Duty Circle: 25% Noise Level: <50dB How To Install 1. Prepare to connect the two wires of the actuator to a 12 volt battery 2.Blue wire to the positive terminal and grey wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections. 3.To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator. When you want the actuator to extend and retract, just press the switch 4. Your actuator will hold its position when the power is off. It will automatically stop when reaches the end. 5.The actuator has pre-installed inner limit switch, it cannot be adjustable. 6. It comes with mounting brackets. How to protect your actuator: 1. Please use the 12V DC power adapter 2. Please do not exceed the rated load 3. All the actuators have duty cycle, they are unable to work all the time without stop. The duty cycle of this actuator is 20%. it means that your actuator needs 4 minutes to rest for every 1 minute of work. If the actuator keeps working for long time, the motor is easily burnt out. 4. Please be careful, the actuator not completely waterproof Widly Use: Furniture and home application Hospitals and healthcare Industrial and construction application Agricultural machinery Package Included: 1 X 18" Linear Actuator 2 X Mounting Bracket 1 X Screw Set

1

RED5688596

3.7 inches

2.0 inches

3.8 pounds

28.0 inches

Appears New

7660 School Road, Cincinnati OH 45249
