YiToo

As Is

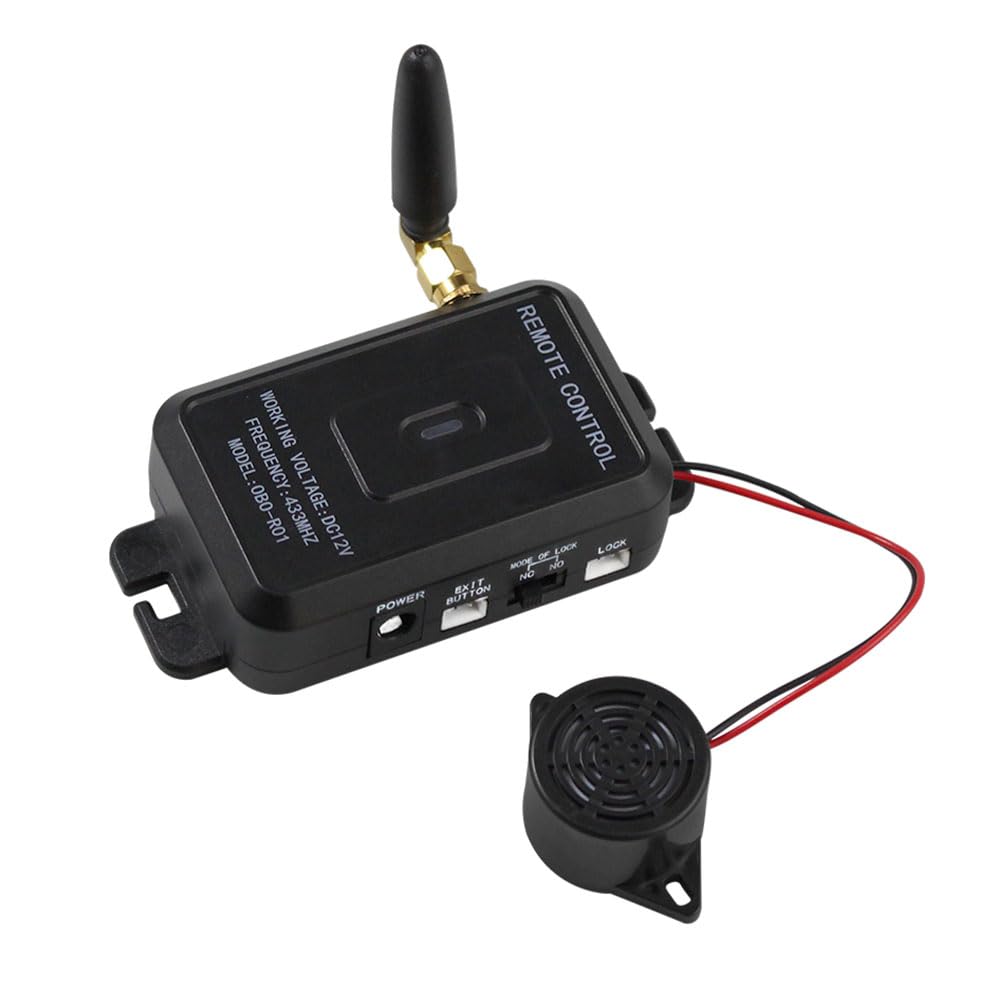

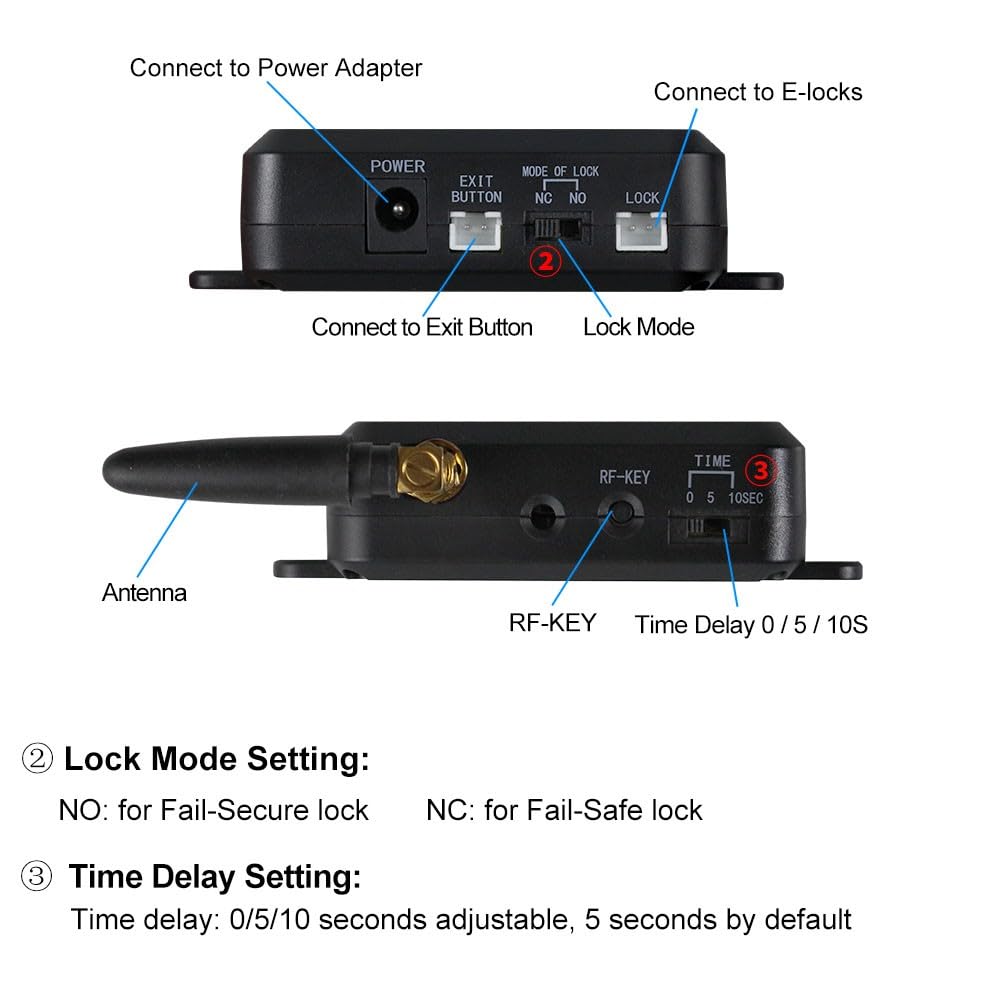

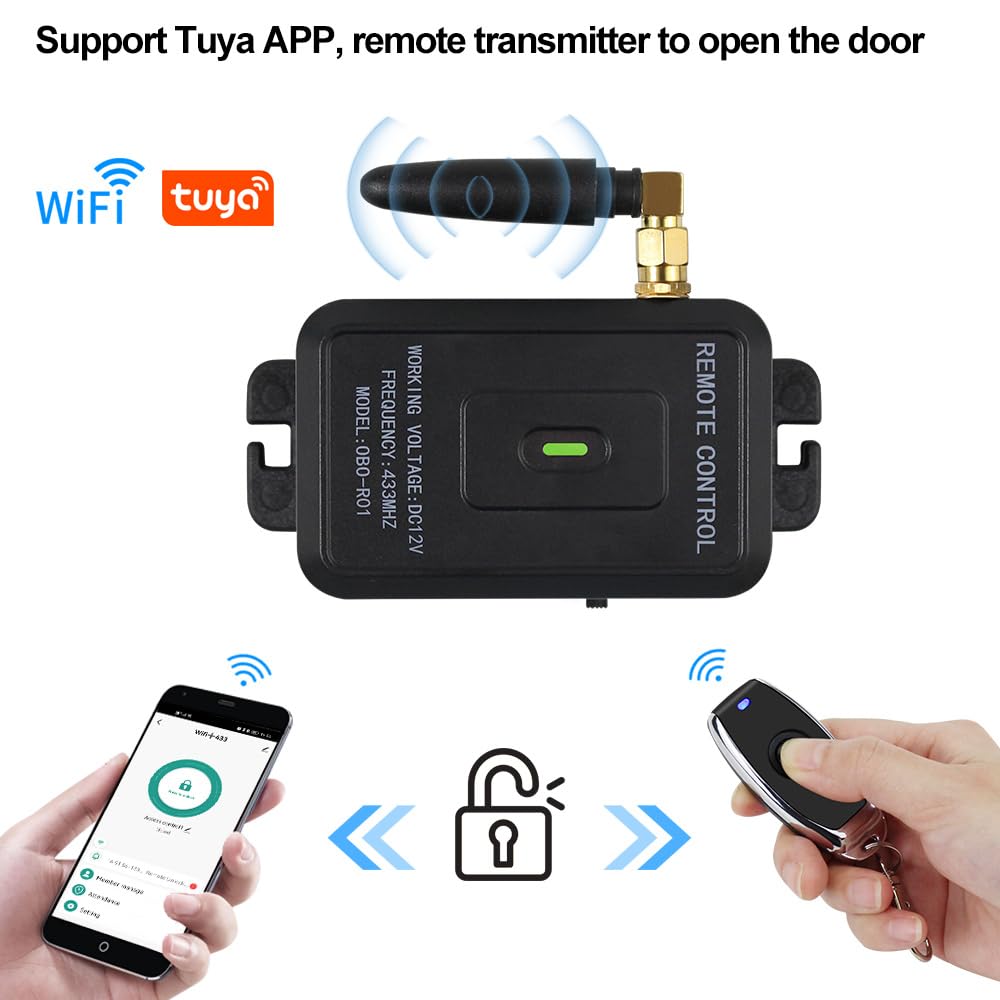

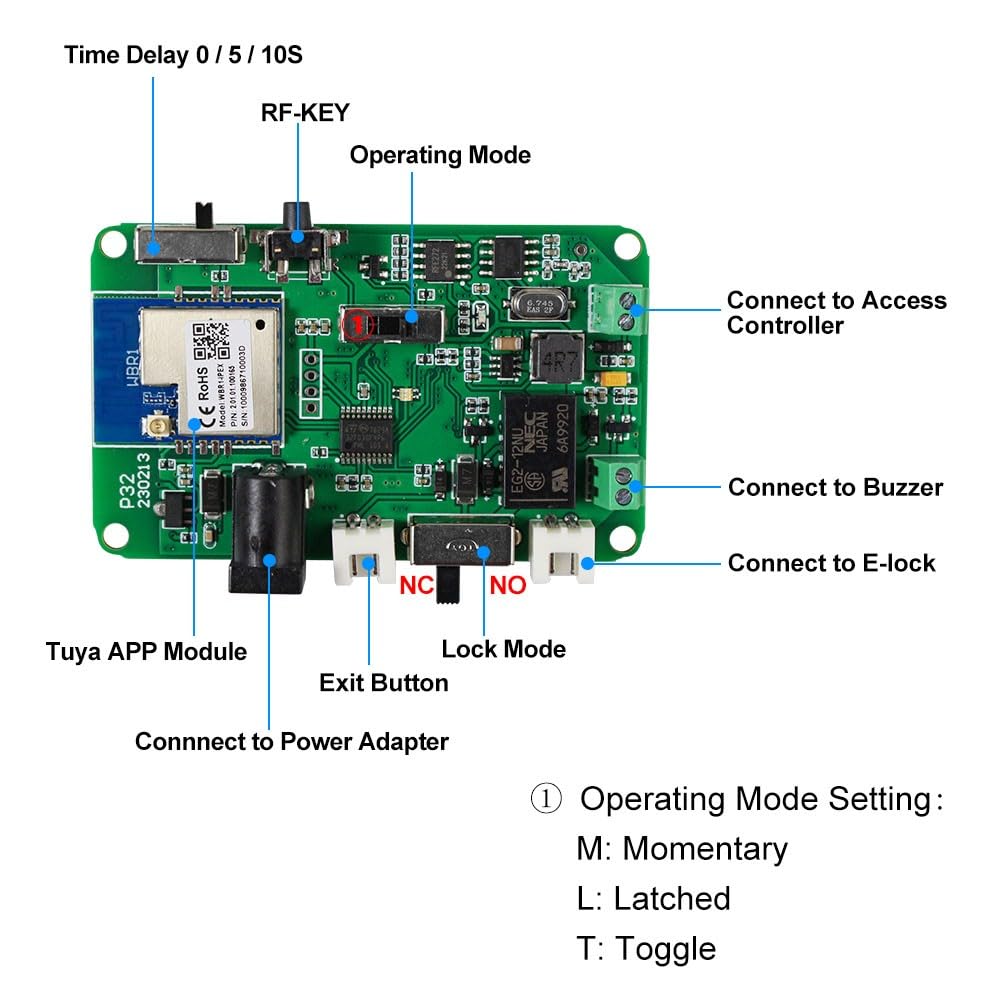

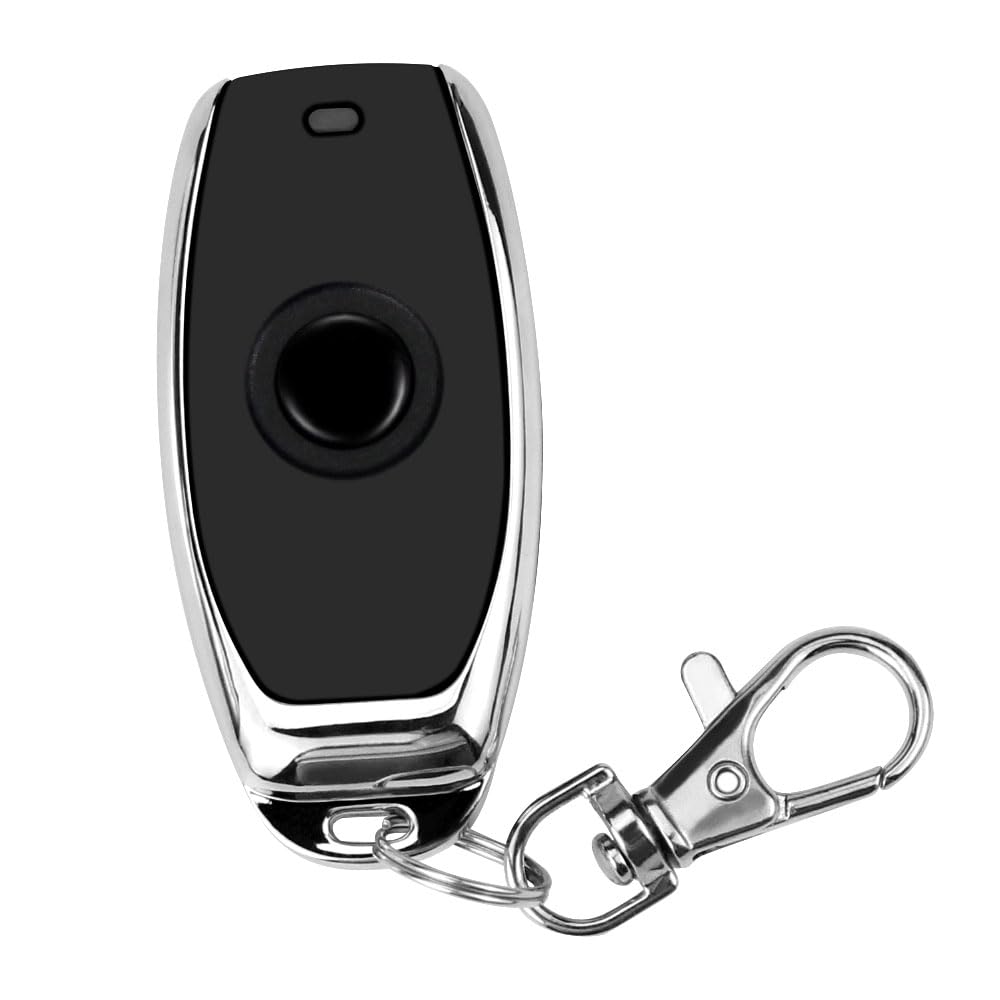

Remote Contorl Receiver: Working Voltage: 12VDC Wi-Fi Standard: 2.4GHz RF Frequency: 433MHz RF Channels: 1 DC Encoding Type: Learning code Supporting Transmitter: up to 40 Operating Distance: 98.43 feet (open) in theory, 15%-30% in reality Locking Delay Time: 0/5/10 seconds adjustable Working Mode: Momentary/Toggle/Latched Built-in DC power connector, wiring easy. Built-in diode, real-time protection relay and buzzer to extend service life. Using Environment: indoor using (Non-waterproof) Working Humidity: 20%RH-80%RF Working Temperature: 32? ~ 113? Material: ABS plastic Power Adapter: Input: AC100-240V, 50/60Hz Max Output: DC12V / 2A (2000mA) Cable Length: 1.5 metter (4.92 feet) Remote Transmitter: Working voltage: 6VDC Working Current: 10mA Powerd by: 2pcs CR2016 batteries (Built-in) Operating Setting: Clear Code: Press and hold the RF-KEY for 8 seconds until the indicator light changes from green to red, indicating the clear code is successful. Pairing Transmitter and Receiver: Adjust the receiver TIME to the position of 0, and press the RF-KEY once, the indicator will flash. Then press the button on the transmitter within 20 seconds, the LED indicator on the receiver will flash green three times to indicate the pairing is successful. Pairing to Tuya APP: Adjust the receiver TIME to the position of 10, and long press the RF-KEY, and not release the RF-KEY until the indicator shows red and green light flashing. It indicats the pairing is successful. Warm Tips: 1. The exit button, access controller and electric locks shown on the diagram picture are not included. 2. Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.

RED6322071

3.9 inches

2.0 inches

1.1 pounds

7.9 inches

As Is

2224 Waycross Road, Cincinnati OH 45240
