AmScope

Good Condition

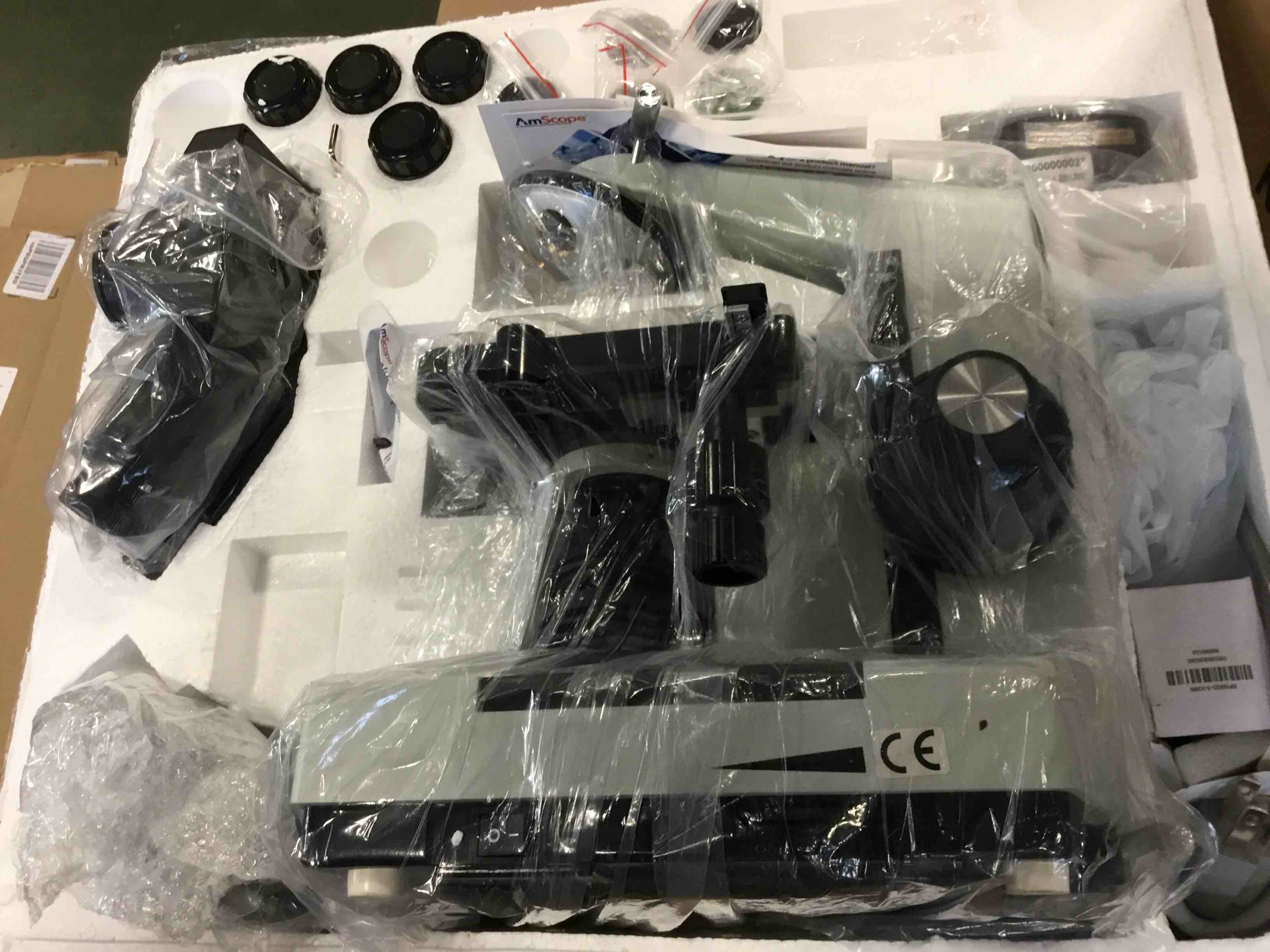

The AmScope T490A-5M digital compound trinocular microscope has a sliding head, interchangeable pairs of 10x and 16x widefield eyepieces, a forward- facing nosepiece with four DIN achromatic objectives, Brightfield halogen illumination, and a double-layer mechanical stage with a stage stop to protect slides and objectives from damage. The 5MP camera has a CMOS color sensor, a reduction lens, image capture and editing software, and USB 2.0 output to capture or display still or video images on a computer or projector. The trinocular viewing head has a vertical camera mount and a compensation-free binocular viewing head with interchangeable pairs of WF10x and WF16x eyepieces and sliding head to adjust inter-pupillary distance, a fixed 30-degree vertical inclination to reduce eye and neck strain, and a 360-degree rotation capability to provide a more comprehensive view and enable sharing. A Siedentopf binocular head enables the viewer to change the interpupillary distance without changing the tube length, eliminating the need to re-focus the image. It has an interpupillary range of 55 to 75mm to accommodate individual eye differences, and bi-lateral dioptric adjustment accommodates individual eye-strength differences. The vertical trinocular port accepts a camera with a 23mm or C-Mount adapter. The forward-facing nosepiece has 4x, 10x, 40xS (spring), and 100xS (spring, oil) DIN achromatic optical-glass objectives that combine with the eyepieces to provide color correction of magnified images. The 40xS objective is spring loaded to prevent slide damage when focusing. The 100xS spring-loaded oil-immersion objective uses oil between the specimen and the objective lens to provide increased resolution over a standard objective. A digital compound microscope is used for inspection and dissection of specimens when two-dimensional images are desired, and where image capture, detailed records, or documentation is required.The 5MP digital camera has a CMOS color sensor for displaying still microscopy images and streaming live videos to a computer or projector. The camera has 40x magnification and a 0.5x reduction lens that ensures that the display has a similar field of view as the microscope eyepiece. The camera can be mounted in a C-Mount or any 23mm eye tube. The camera includes image capture and editing software that provides still image and live video capture and editing capability, including measurement functions. The software supports JPG, TIF, GIF, PSD, WMF, and BMP file formats and is compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. Camera drivers are compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. The software includes Windows APIs for native C/C++, C, DirectShow, Twain, and LabVIEW that enable custom application development. The camera has a USB 2.0 data port (cable included).The microscope has lower (transmitted, diascopic) Brightfield illumination that transmits light up through the specimen for enhanced visibility of translucent and transparent objects. Brightfield (BF) illumination allows the specimen to absorb light, resulting in a dark image on a light background. Halogen illumination provides bright light in a concentrated path and has a rheostat to control light intensity. The 1.25 NA Abbe condenser is mounted on a rack-and-pinion control system, can be adjusted to control the distance of the light from the stage, and has an iris diaphragm to optimize the amount of light illuminating the specimen. The double-layer mechanical stage, with 1mm stage divisions, locks the slide into place and provides precise slide manipulation along the X- and Y-axis to allow coordinates to be recorded, enabling the viewer to return to a specific location on the slide. A stage stop prevents the stage from coming into contact with the slide and objectives. The stage is 5-1/2 x 5-1/2 inches (140 x 140mm) and has a traveling range of 2-15/16 x 1-3/4 inches (75 x 45mm). Graduated coaxial coarse and fine focus has a focusing range of 1-3/16" (30mm) and fine-focus divisions of 0.002mm (0.0000787") that enable measurements to be taken. Focus knob tension control prevents the stage from drifting out of focus. The solid-metal enamel-coated body is durable and resistant to stains and corrosion. Microscope SpecificationsHeadCompound trinocularMagnification40x-1600xTrinocular port23mm or C-MountEyepiecesWF10x, WF16xObjectives4X, 10x, 40xS, 100xS (oil)StageDouble-layer mechanicalLighting configurationTransmitted (lower)Condenser1.25 NA AbbeDiaphragmIrisLight sourceHalogen with rheostat, 6V/20WIllumination typeBrightfieldPower110V Camera SpecificationsResolution5MP (2592 x 1944 effective pixels)Image typeStill image and video display and captureCamera typeBrightfieldCamera sensor1/2.5" Aptina MT9P001 CMOS (color)Magnification40xReduction lens0.5xMounting size23mm or C-MountFrame rate60fps at 640x480; 18fps at 1280x960; 5fps at 2592x1944Computer connectionUSB 2.0 (backward compatible on PCs only)File formatsJPG, TIF, GIF, PSD, WMF, BMPSoftware packageImage capture and editing for Windows XP, Vista, 7, and 8; Mac OS X; and LinuxCamera driver compatibilityWindows XP, Vista, 7, and 8; Mac OS X; and Linux Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA.What's in the Box?AmScope T490A-5M microscope with double-layer mechanical stageWF10x eyepieces, 23mm, one pairWF16x eyepieces, 23mm, one pair4x DIN achromatic objective10x DIN achromatic objective, 20mm40xS DIN achromatic objective, 20mm100xS (oil) DIN achromatic objective, 20mmImmersion oil, one bottle(3) Color filters; blue, green, and yellow5MP digital camera (MU500)0.5x reduction lensUSB 2.0 cableSoftware CDSpare halogen bulbSpare fuseDust coverPower cordInstructions

T490A-5M

GRN6825163

17.0 inches

9.5 inches

18.8 pounds

20.0 inches

Good Condition
