Pentair

Good Condition

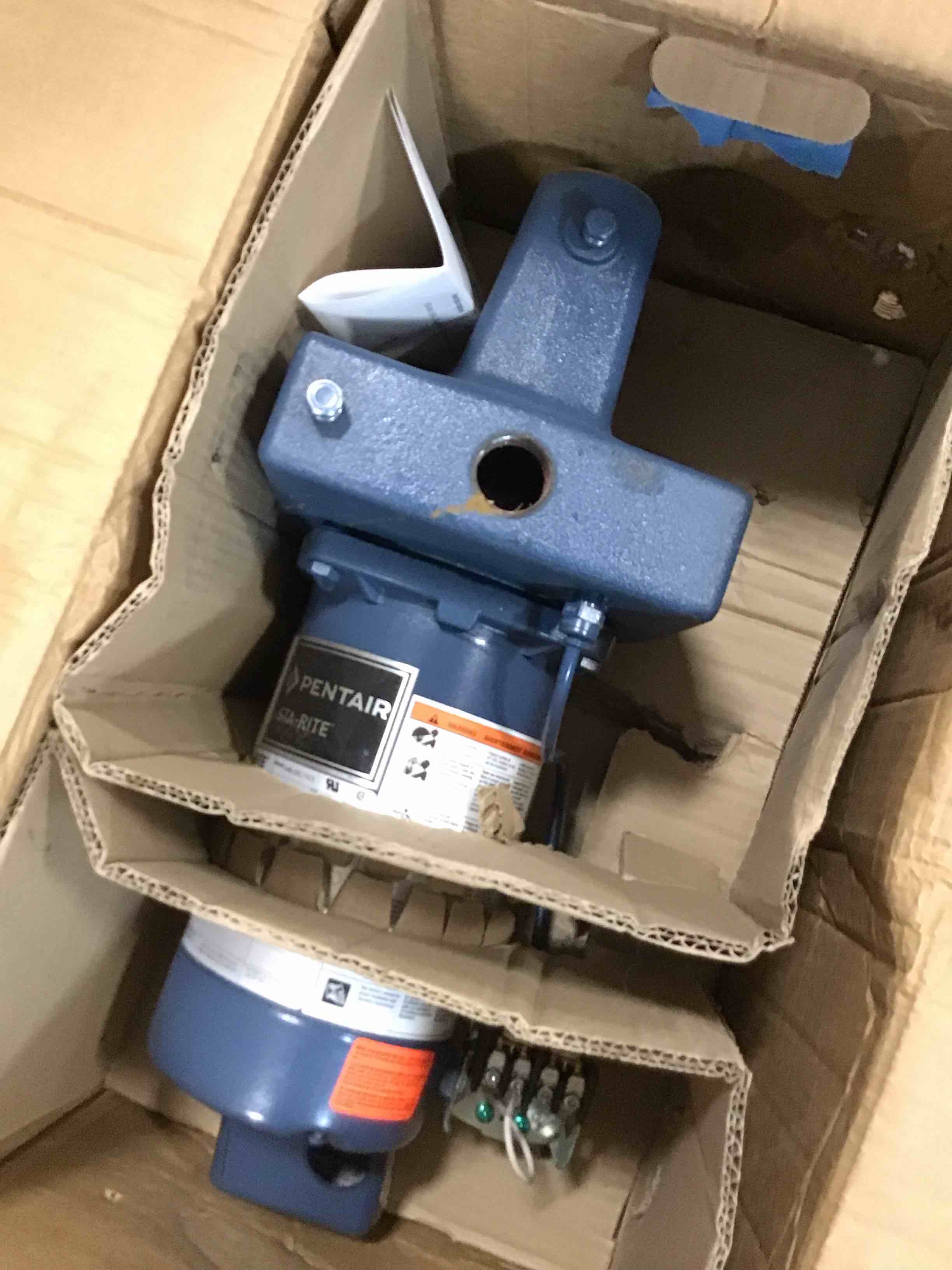

The ProJet SN Series provides excellent performance with strong pressure for wells to 25 ft. deep. Quality Construction - Close-grained cast iron body. Drain port provided for easy winterizing. Precision Molded Diffuser - Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser. Motor Windings - Superior insulation materials protect against excessive moisture and contaminant assure prolonged motor life. Heavy- duty Ball Bearings - Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth quiet operation. High-flow version of the 1/2 HP model allows higher flow rates with less horsepower and pressure. Body Construction: Cast Iron. Horsepower: Available in 1/2, 3/4, 1, and 1-1/2 HP. Maximum Capacity: 13.7 GPM (SNC-HF25L model). Flow at 10' List and 40 PSI: 11.4 GPM (SND model). Max Lift: 25' Maximum Shut-off Pressure: 70 PSI (on SNC & SND models). Maximum Inlet Pressure: 50 PSI (inlet pressure + discharge not to exceed 100 psi). Pressure Switch Setting: 30 - 50 PSI (except Hi-Flow model SNC-HF25L uses 20-40). Suction Size: 1-1/4" NPT. Drive Size: n/a. Discharge Size: 1" NPT. Amp Draw (at full load): Recommended Breaker: Model and Voltage Dependent. Voltage: 115v / 230v, 60Hz, 1-phase. Maximum Liquid Temperature: 140°F (60°C). Note : All Pumps, Are Tested By The Manufacture, Prior To Shipping. At Times You Will Encounter A Smalll Amount Of Water Residue Left Over From The Test. Returns will not be ACCEPTED if item has been INSTALLED or there should be no signs of installation. Must be returned in the Same Packaging as received.

PNK0099480

12.4 inches

11.1 inches

41.2 pounds

22.2 inches

Good Condition

835 Edwin C. Moses Blvd., Dayton OH 45417
