Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0"Bore x 1.75" Rod Cylinde
Sold
As Is
QTY 1
$0.10
MSRP
MSRP is a sample online retail price.
$12.00
Last Update:
09/19/2024, 3:37 PM ESTItem Information
MSRP:
MSRP is a sample online retail price.
$12.00
Brand:
BIGLKNM
Condition:
As Is
Description:

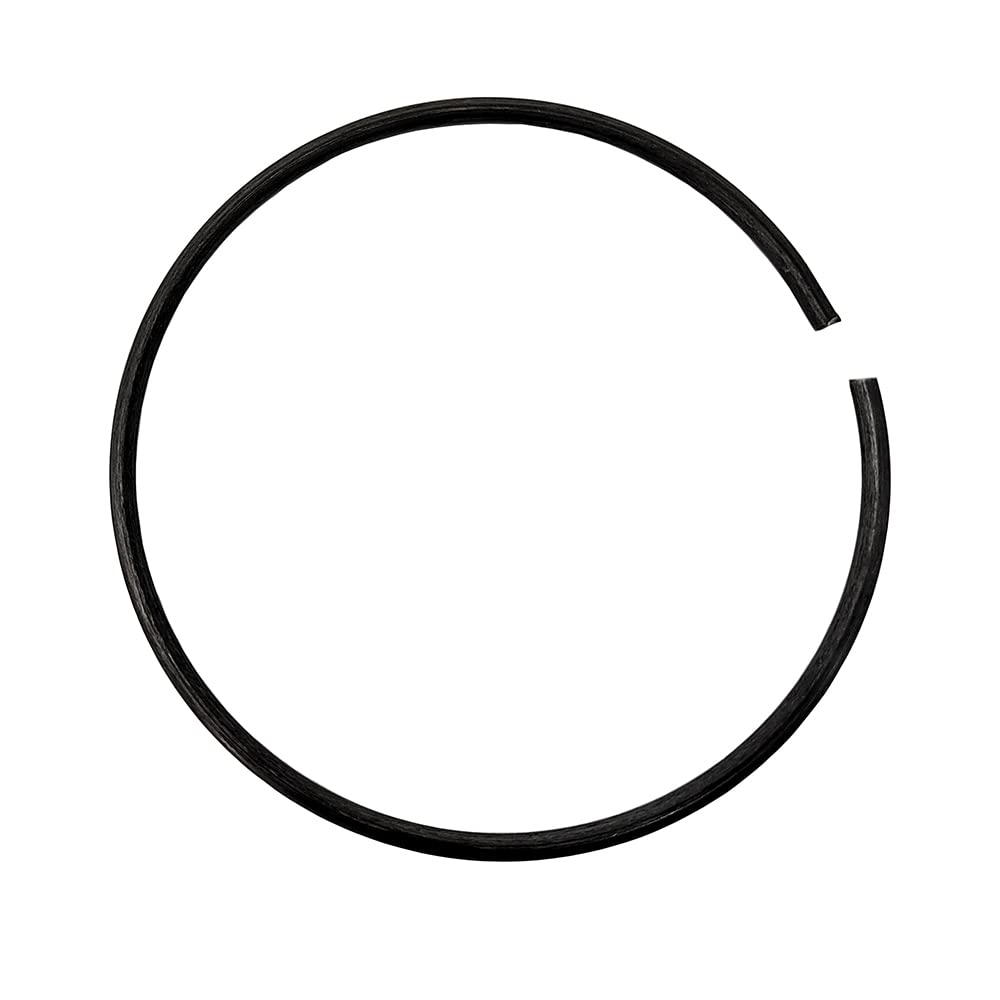

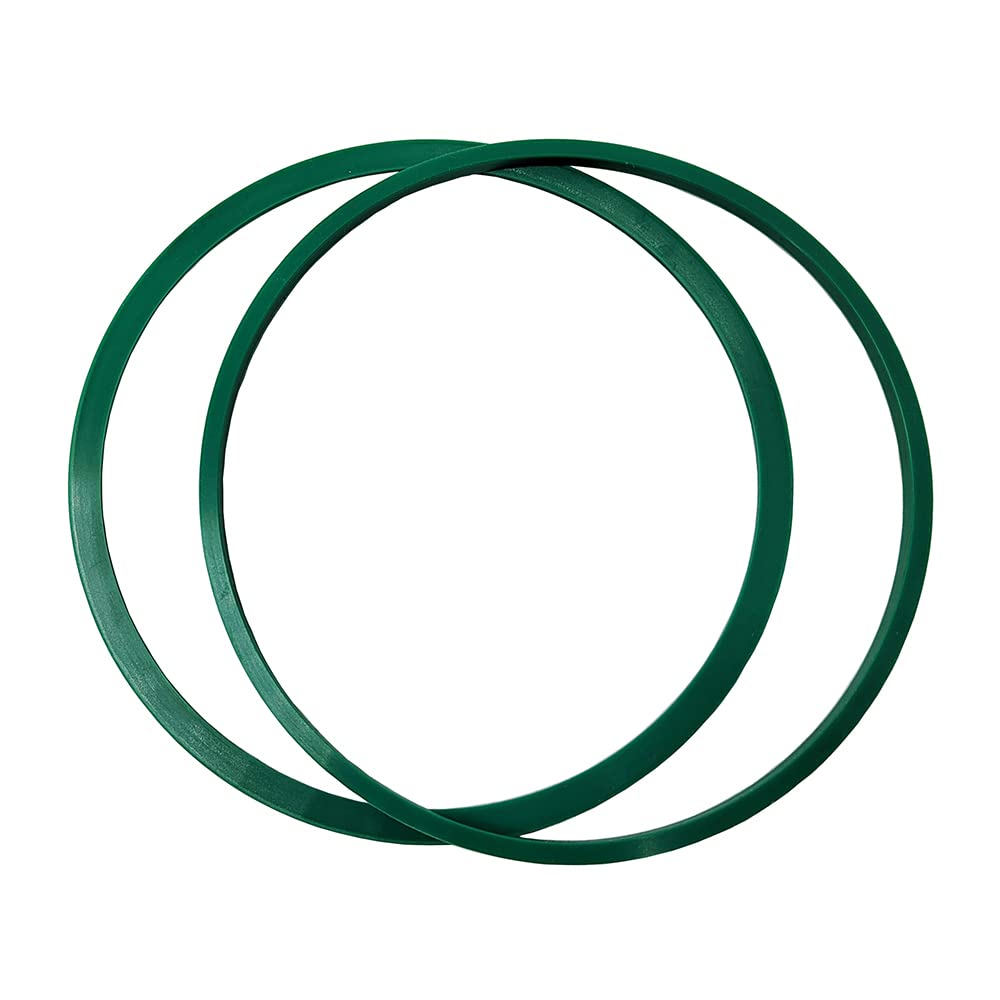

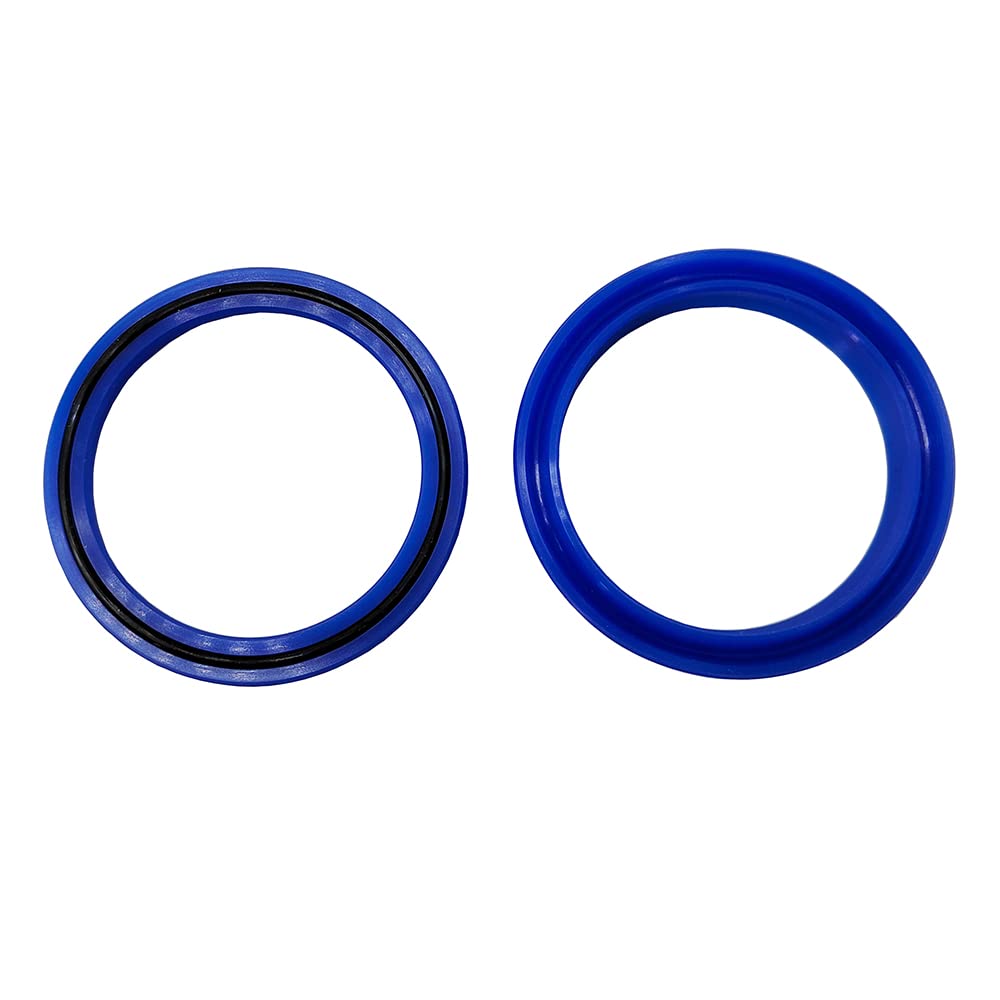

Hydraulic Log splitter cylinder rebuild seal kit for 4.0"Bore x 1.75" rod cylinder To know whether it fits your cylinder, one good way is to disassemble and measure your cylinder to compare with each item specification. Double check each seal groove is good for our part sitting in. 1. Cylinder tube Bore (I.D.) 4.0" x rod (O.D) 1.75". Please note some cylinder rod head OD size is not rod size. 2. Wear rings. Piston wear ring : 101.6 mm ( OD 4") x 95.25mm (ID 3.75") x 9.53mm (0.375" wide), Nylon Rod wear ring : 44.5mm (ID 1.752") x 50.8mm (OD 2”) x 9.53mm (0.375" wide), Nylon 3. Piston seals 1 square ring and 1 O-ring. Piston Square ring: D101.6 mm x91.6mm x 3.28mm; O-ring (installed under the square ring): 91.0 mm x 2.65 mm . CPU + NBR 4. Rod O-ring (item 13): 44.5mm x 54mm x 5mm, CPU. There is O-ring inside. 5. Rod dust ring (Item 12): 44.5mm x 54mm 5.5mm /7.3mm, TPU Below is 4.0"Bore x 1.75" rod cylinder Specification that OEM made by this seal kit: Retracted (center to center between rod mountain hole and clevis hole: 32.4” Extended (center to center same as above): 56.4” Stroke: 24±0.05” Dimension from center of clevis hole to back face of cylinder: 2.95” Dimension from center of rod end hole to front face of rod: 1.06” Dimension from center of rod end hole to front face of cylinder: 1.18” Ports: 1/2" NPT Dimension from port to port: 25.4” Rod: 1.75" rod Rod end mountain hole: 0.55” Clevis Mountain hole: 1.16” Dimension between mountain clevis to clevis: 0.87” Thickness of each mountain clevis: 0.375” Length of each mounting clevis: 4.125”
Lot Code:
YEL6760513
Width:
4.8 inches
Depth:
2.7 inches
Weight:
0.3 pounds
Length:
4.9 inches
Additional Info:
As Is
Pickup Location:
204 Peterson Drive, Elizabethtown KY 42701
Auction Number
ETN2403901
