Yosoo

Good Condition

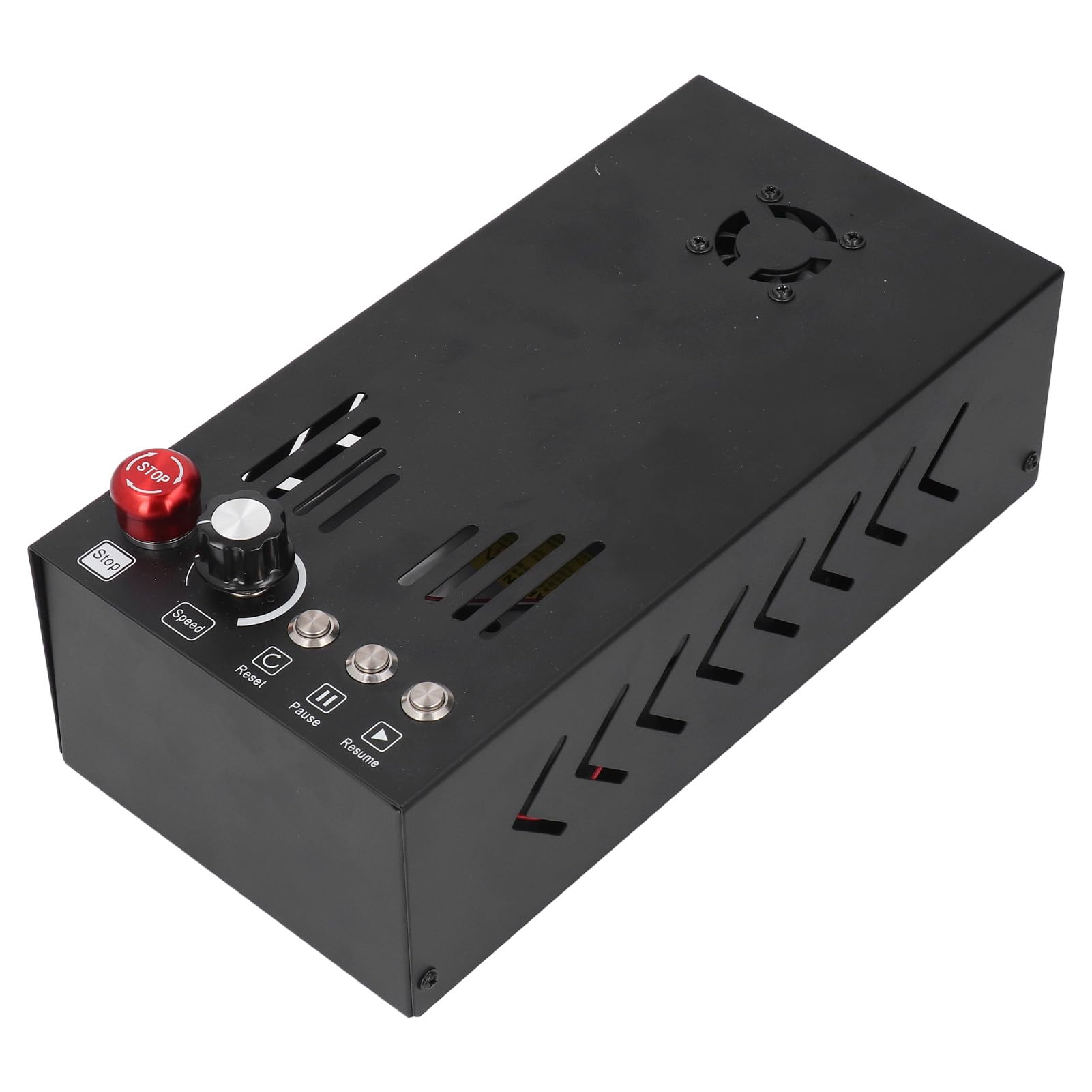

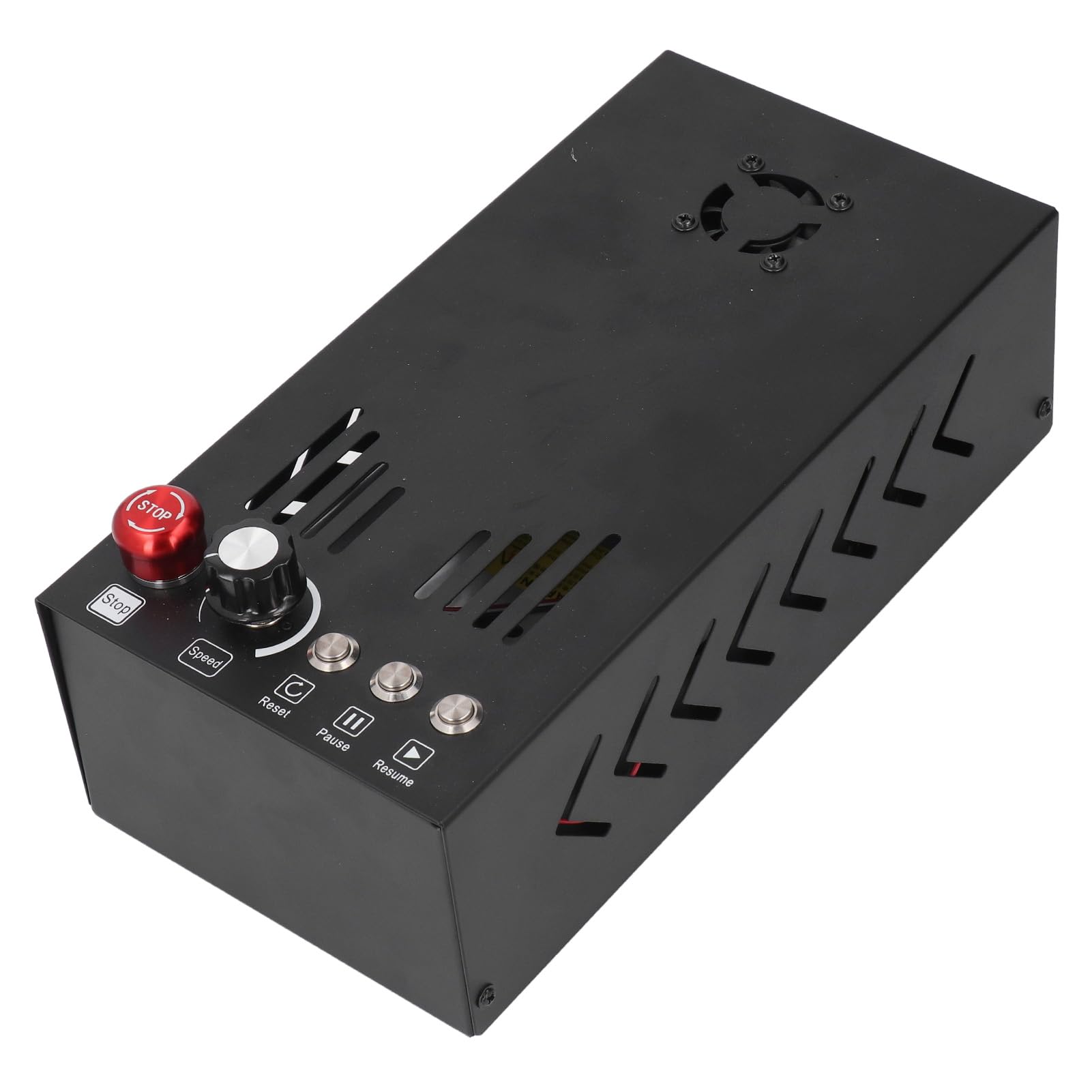

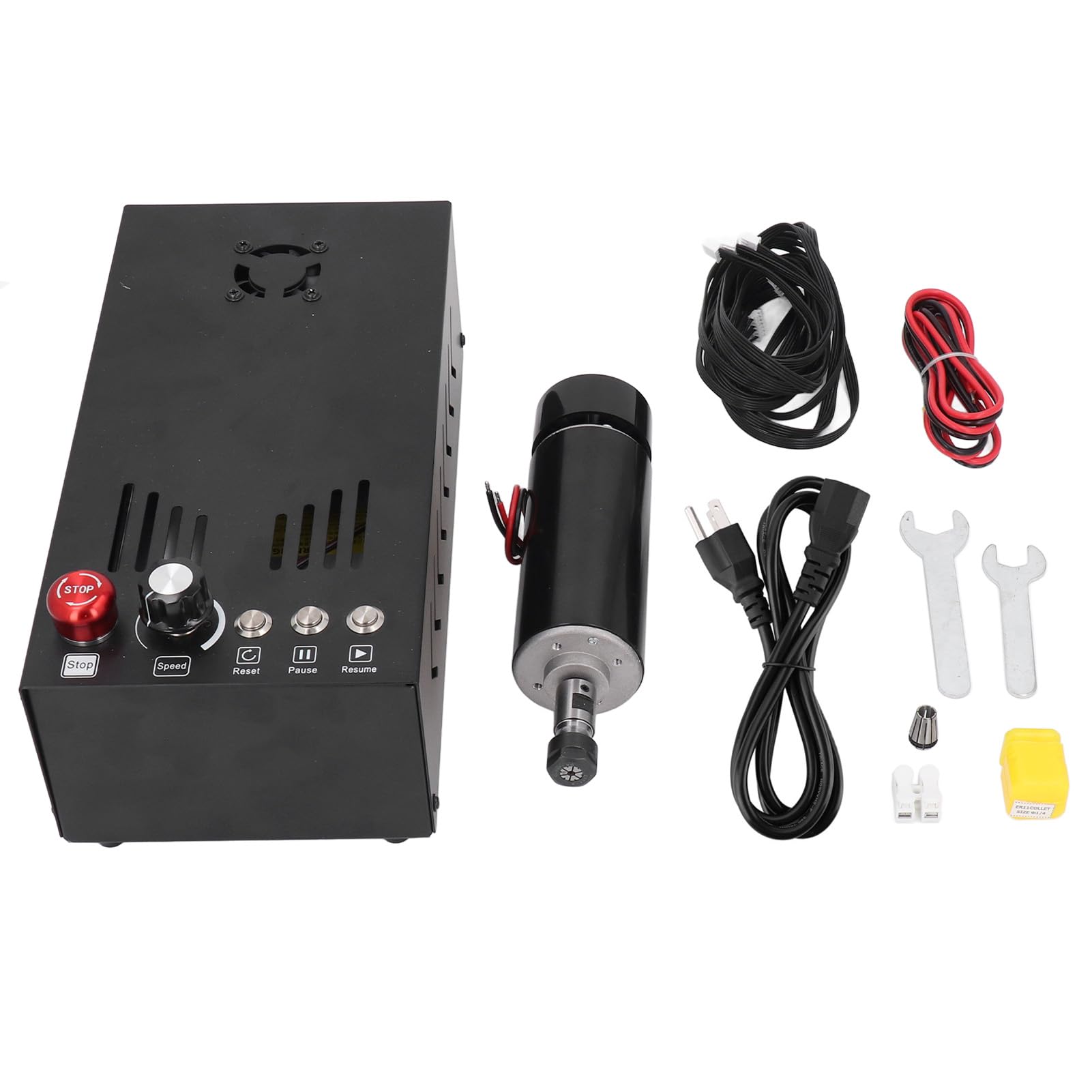

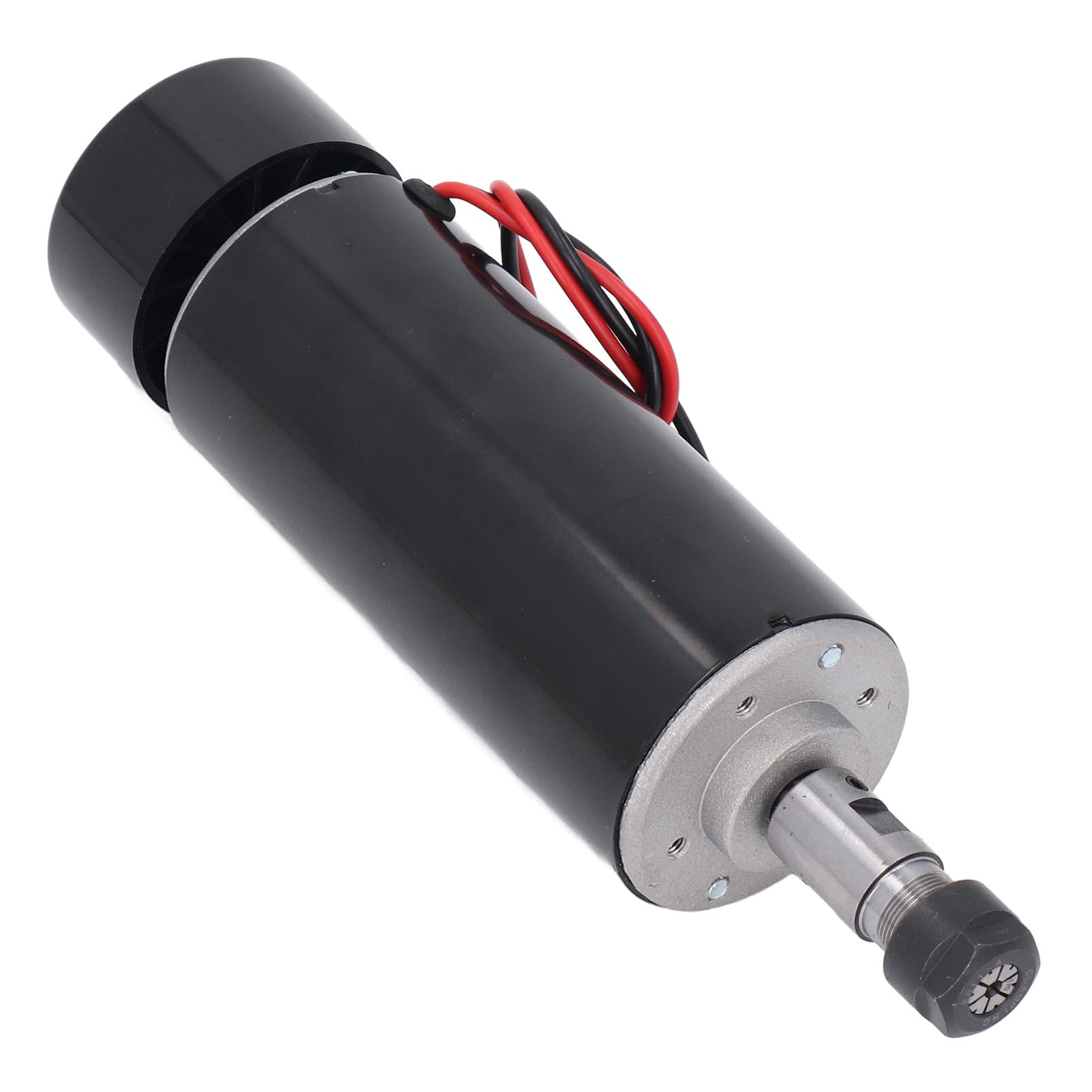

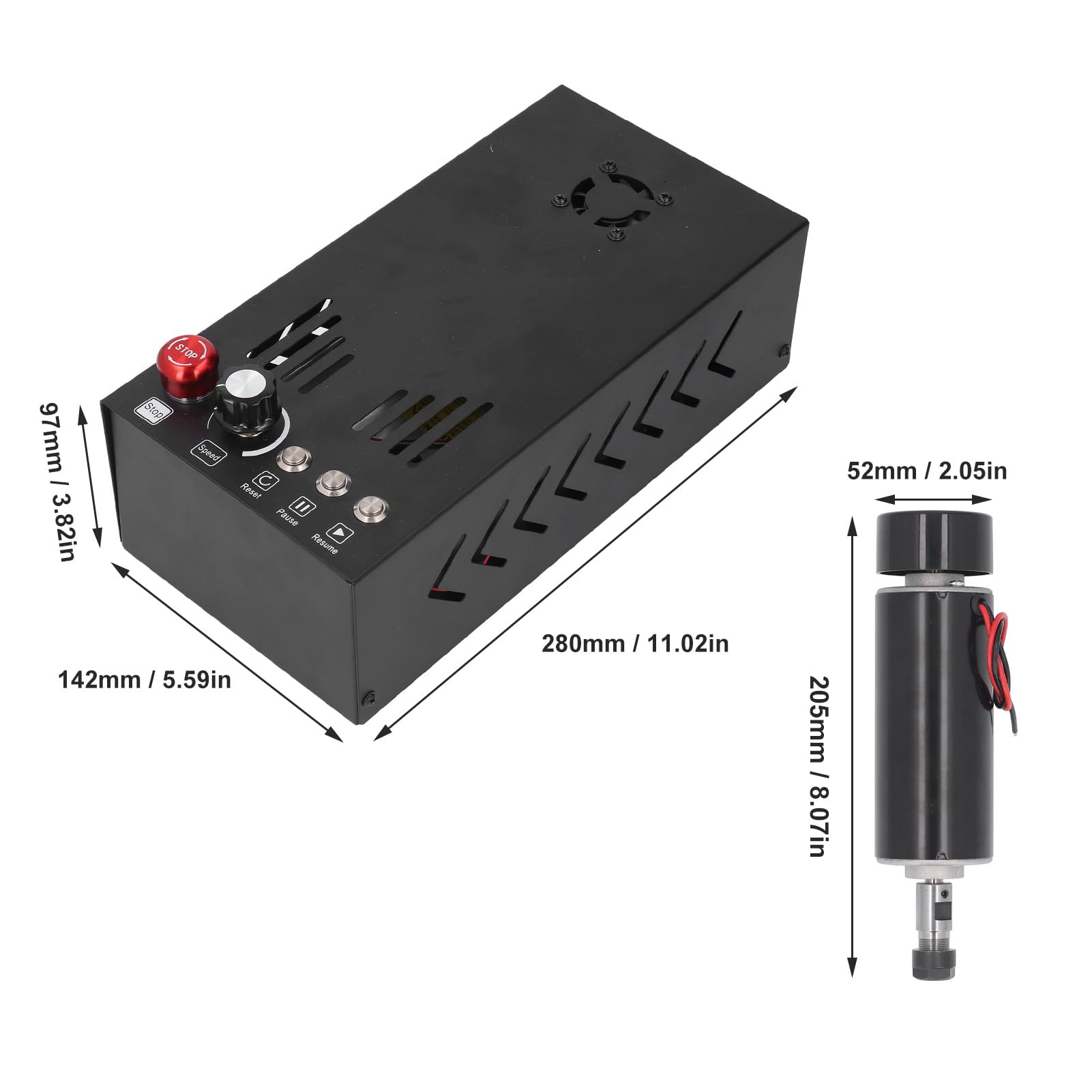

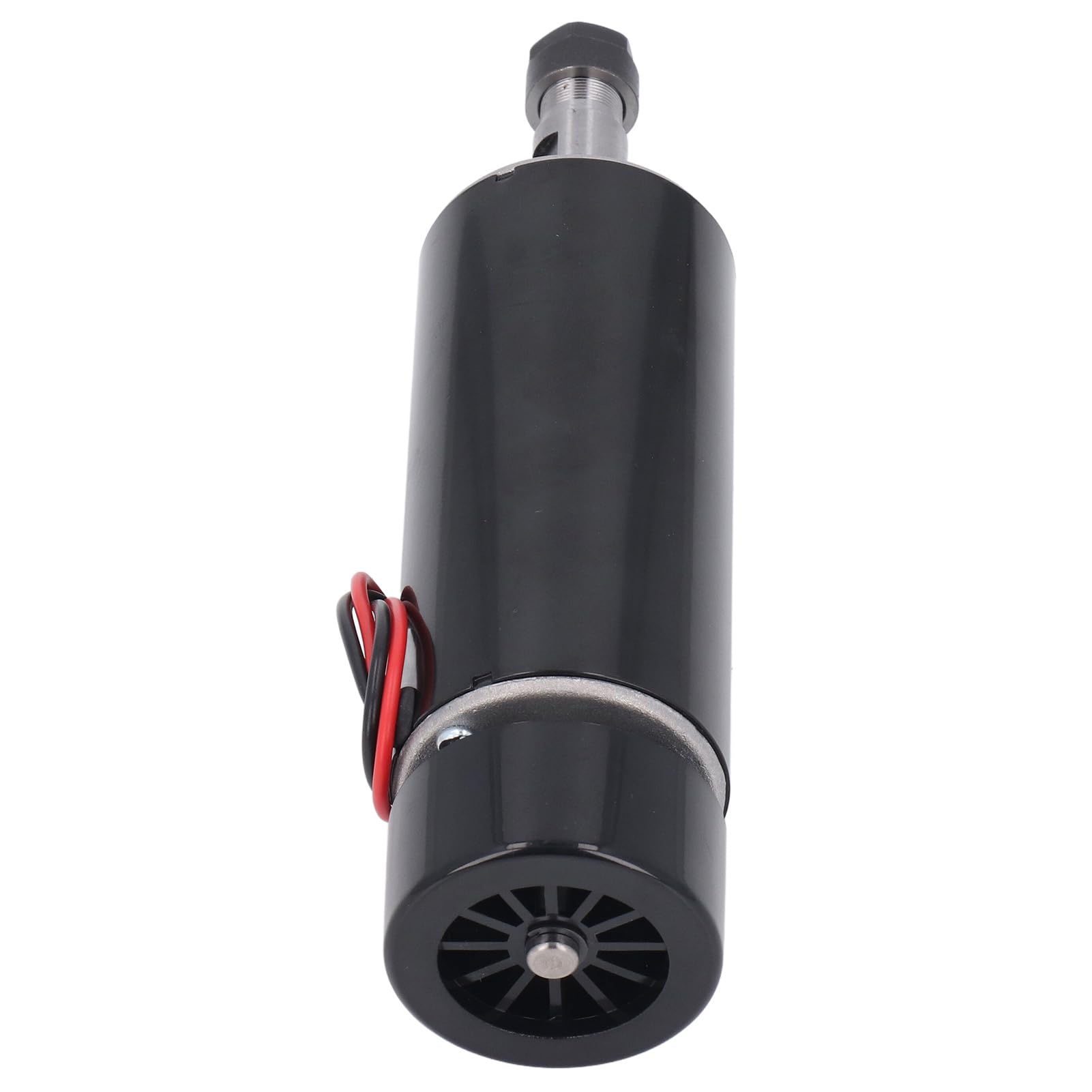

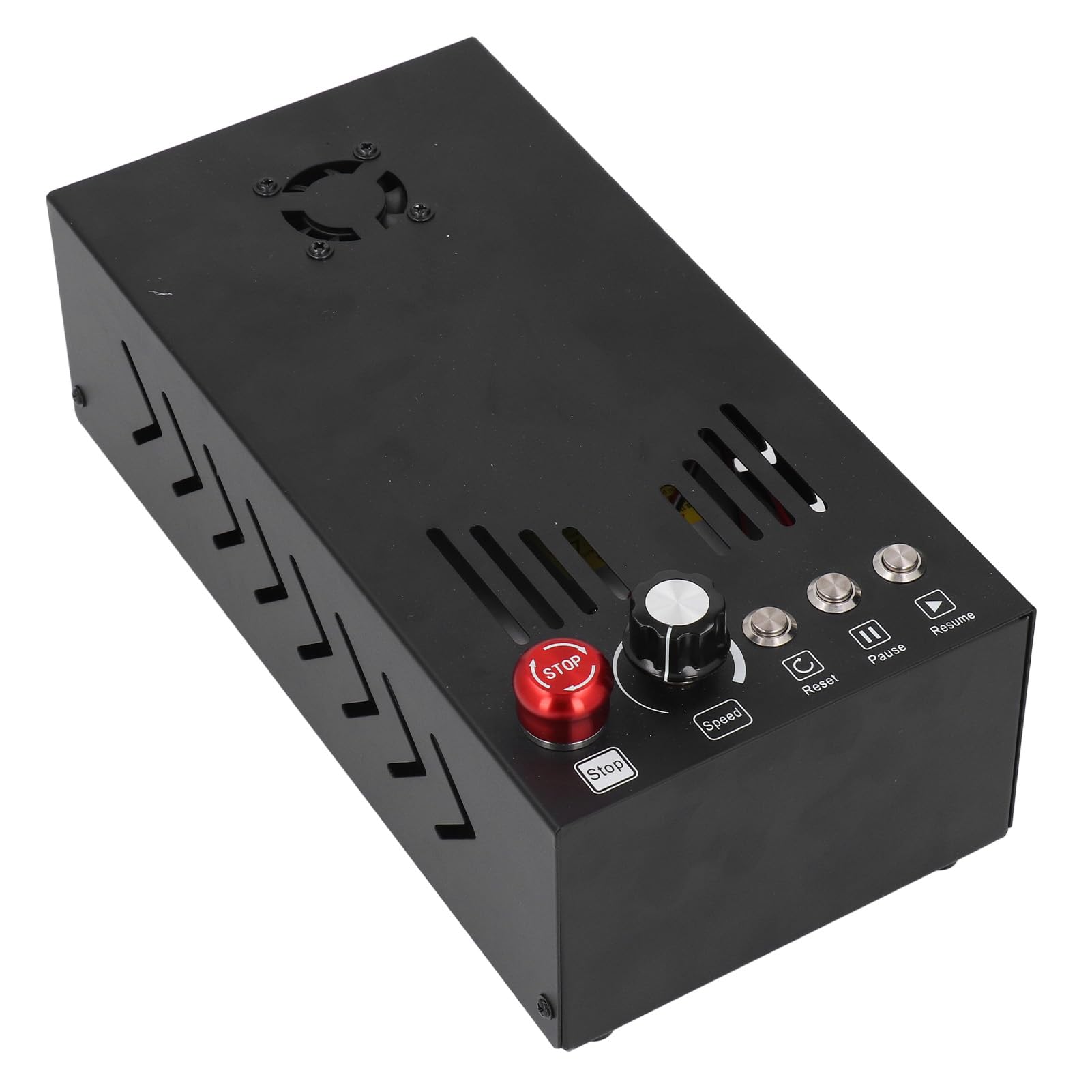

[Efficient Cooling] Forced air cooling system ensures extended performance without overheating. [Enhanced Functionality] Integrated power supply and control board with 48v output voltage and safety features. [Versatile Compatibility] Compatible with 42 stepper motors and 48v cnc machines, supporting various carving applications. [High Carving] With a radial runout of 0.01 to 0.03, ideal for metal and non-metal materials. [ Bracket] Premium aluminum mounting bracket for stability and accuracy in carving work. Spec: Item Type: CNC Spindle Motor Kit Material: Aluminum Alloy Spindle Power: 500W Spindle Speed: 11000 RPM Spindle Diameter: Approx. 52mm / 2.05in Output Voltage: 48V Output Current: 10.4A Insulation Strength: 400V Resistance: Approx. >2 Megaohm Maximum Torsion: 0.6 (N.m) Package List: 1 x Control Box 1 x 500W Spindle Motor 1 x Spindle Motor Cable 4 x Stepper Motor Cable 1 x Power Cable 1 x Spindle Connection Terminal 1 x Chuck 6.35mm 1 x Storage Box 1 x 13mm Open End Wrench 1 x 17mm Open End Wrench 1 x User Manual How To Use: Install and use! Note: 1. Connect the spindle to the spindle cable using the spindle connection terminal. Red to red, black to black. 2. When using a single Y axes machine, choose any Y axes interface. 3. If you want to control the spindle motor with G code, select Auto mode; if you want to control the spindle motor with the speed knob, select Manual mode. 4. When using the module, make sure the Pin sequence is consistent. The Pin sequence of our control board is (12V, PWM, GND).

BRN2062262

9.8 inches

6.7 inches

7.9 pounds

13.4 inches

Good Condition
